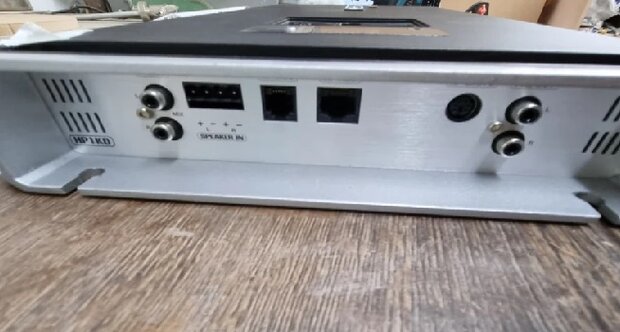

Hertz HP1-KD 3200W RMS Mono Amplifier

is een unieke versterker, en is zo goed als nieuw

wordt geleverd met de beschermfoom uit de doos(doos zit er niet bij)

lengte: 59cm

breedte: 28cm

hoogte: 5,5cm

• 1050W x 1 @4-ohm
• 2100W x 1 @2-ohm
• 3200W x 1 @1-ohm
• HP Link mode RMS Power:
• 3200W x 1 (4-ohm - HP LINK)
• 6600W x 1 (2-ohm - HP LINK)
• Low Pass Filter: 50 - 350Hz @24dB/Oct (L+R)
• Subsonic: By-pass / 10 - 50Hz @24dB/Oct
• Output Phase Control (continous): 0/180 Degress
• HP LINK mode: Master/Slave
• Output Filter: Bypass / 59-350Hz @12dB/Oct
• T.H.D. (100Hz @4-ohm): 0.09%
• Bandwith (-3 dB): 4 - 350Hz
• S/N Ratio (A weighted @1V): 87dBA
• Damping Factor (100Hz @4-ohm): 100
• Pre-In sensitivity: 0.3-5Volts
• Pre-In impedence: 15 kohms
• Speaker-In sensitivity: 1.4-24Volts
• Speaker-in impendence@ 5kOhms
• Load impendence: 4-1Ohms
• Power supply voltage: 11 - 16.5Volts
• Idling current: 3.3A
• Idling current when off: 0.05mA
• Consumption @1, 14.4VDC: 160A
• Remote In: 7-16.5 VDC - 1mA
• Remote Out: 12 VDC - 50mA
• Automatic Turn On/Off with speaker in
• Fuse: 300A or 150A x 2 (AFS - external)
• HP RVC (Digital remote Volume Control): Level: -36, +6dB
• HP RBC (Remote Bass control): Frequency 40Hz - 120Hz, Boost: 0dB, +9dB
