estimate available February 2025
EXCURSION REFERENCE SERIES - NO FERROFLUID
26mm Competition Tweeter - 4Ohm
100 RMS / 200 Watt @ 94dB 1W/m
2.200 - 30.000 Hz Frequency Response
21mm Mounting Depth - 33mm Air Chamber Diameter
44mm Install Cut Out Dia - 48mm Overall Diameter
6dB/oct parallel switched Dual MKP inline RX passiv Filter

* finest selected japanese Silk Dome Tweeter with ADC (Activ Damping Coating).
* Air Chamber design for low FS and efficient cooling of the Neodym Motor system.
* 50cm presoldered high grade tinned OFC (Oxygen Free Copper) Speakercable. Plug&Play
* praxis born Inline passiv Filter with 3M Sticker and minimized Dimension (50x37x24mm).
* high grade Dual parallel switched MKP Audio Capicator for flexible modification on demands.
* optional 2/4/6/8/10dB per Oct. Resistor Module, XLR2 / XLR4 / XLR6 / XLR8 / XLR10.

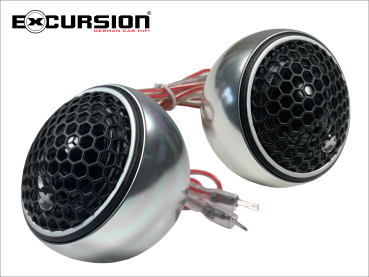

* optional available aluminium Globe Set for the demanding Car Audio Competition.

Our first drawings of our design date back to 2014. It took many years to find reliable partners who were willing to implement our design with us.

Introduced a decade later in the EXCURSION PERFORMANCE series, with the subsequent introduction of the EXCURSION REFERENCE series midrange speakers, we realized that the speed and the associated resolution and impulse of our PX tweeter complemented the same attributes and character of the new REFERENCE midrange speakers even better.

So why separate a found couple when we could organize the wedding with the follow-up production and the bride was willing to take the surname REFERENCE. In particular, through the sales of the successful PX-1S initial production, all exclusive tooling costs could be paid off and thus the young RX-1S bride has her trousseau in her suitcase with an even better market positioning.

An audiophile love story with a happy ending which more than deserves the name REFERENCE and which so-called "competitors" are very welcome to compare themselves to.

Shipping:

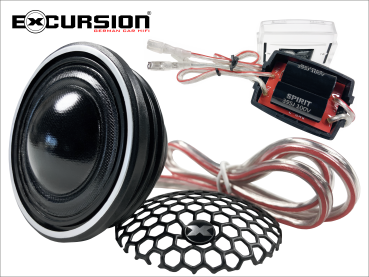

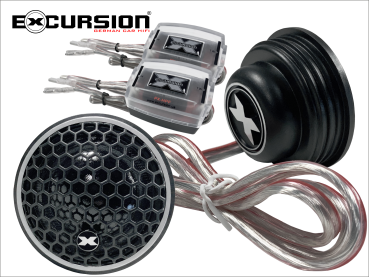

- 2 Tweeter prewired
- 2 passiv Filter with MKP Capicator

Optional:
- 2x PXI AG (Aluminium Montage Kugeln für PX-1S)
- 1x PXI SC (10m 14GA tinned OFC orignl PX System Speakercable with PX Connector)
