Productomschrijving

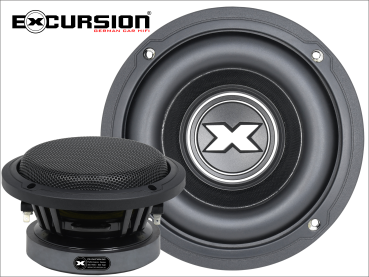

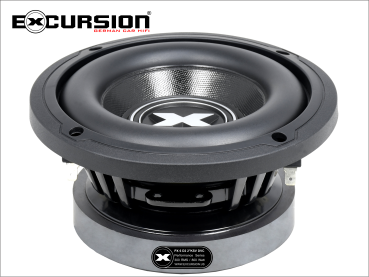

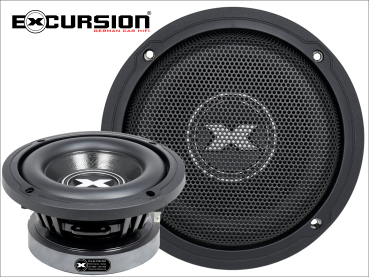

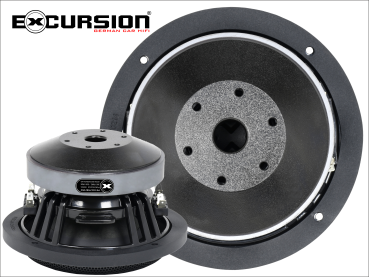

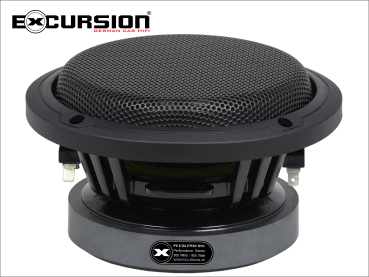

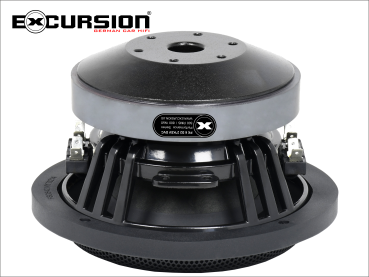

6.5" / 16cm PX Performance Expert Series Subwoofer
* 800W Peak / 300 RMS Power Handling
* 40 Hz-300 Hz Frequency Response
* Dual 4Ohm @ 86dB (1W/1m) Sensitivity
* 2" / 51 mm 4Layer KSV High Temp.Voice Coil
* Dual Layer lightweighted Glasfibre aminated PULP Paper Cone
* Dual Pressed UV Threated Foam Surround
* Excursion 3D Dustcap Design
* Die Casted full vented Excursion Basket
* Top vented Voice Coil Kapton Former
* Selectiv NOMEX Spider
* Rubber Gasket Plug Grill Protection included
* 89 mm Mounting Depth
* 145.5 mm Install Diameter
* 3,4 kg/pc

VC Roll Range Height 22 mm
XMAX linear 7 / 14 mm
DC Widerstand 2x 3.6Ohm
BL @ Series 9.31 Parallel
Suspension Compliance Cms 0.09
Mechanical Q Factor Qms 5.76
Electrical Q Factor Qes 0.46
Total Q Factor Qts 0.43
Moving Mass Mms 67 g
Eq.Cas Air Load( liters) VAS Liter 1,85
Resonant Frequency Fs Hz 59
Effective Piston Area SD 114.99

Shipping:
- 1x PX 6 D4
- 1x PX 6 GRILL
